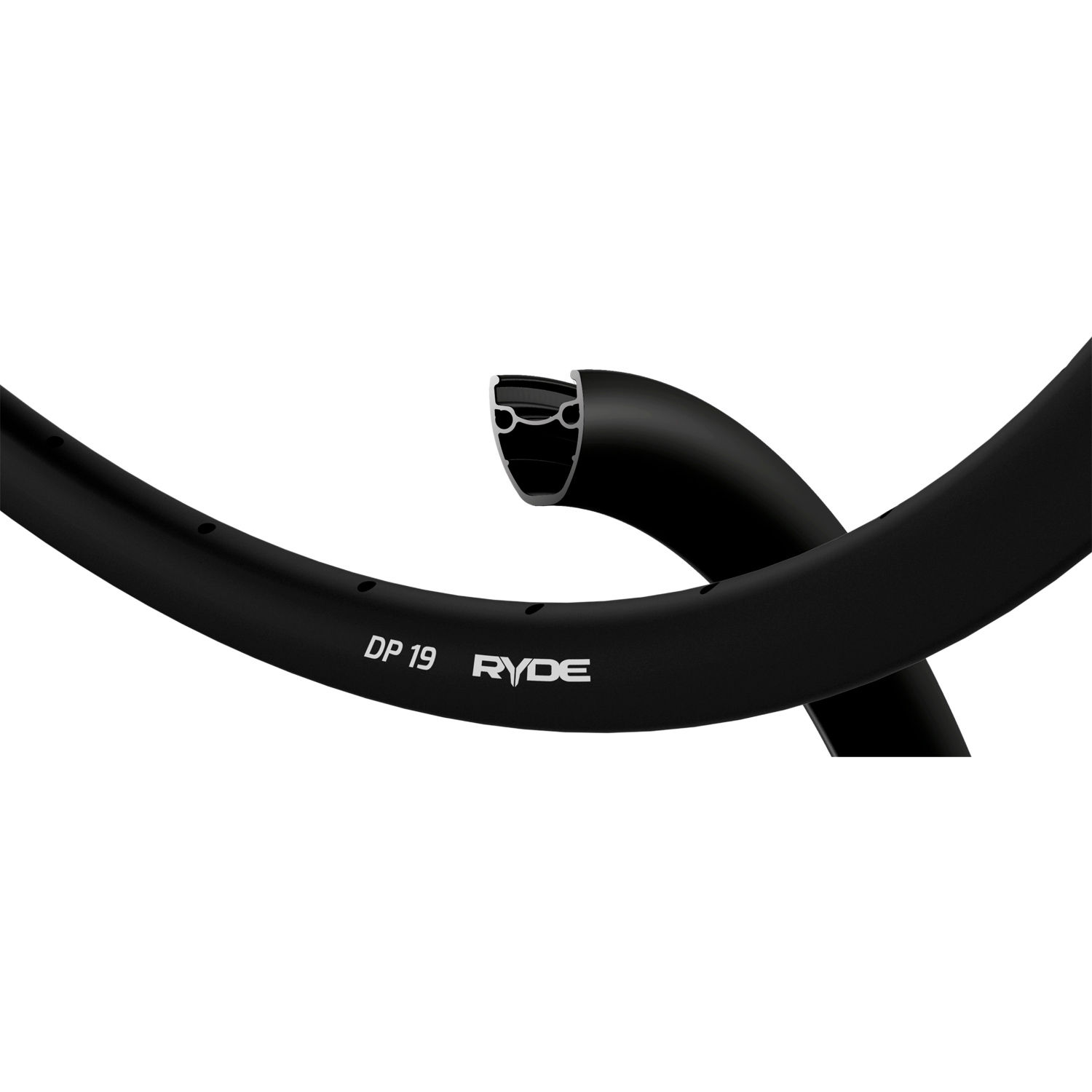

The DP 19 was designed as a Disc Brake V-shaped rim for race bikes.
The 19 mm internal width works perfectly up to 37 mm gravel/cyclocross and racing tires.
STANDARD SERIES
To have the right rim on the right bike, ryde offers a broad range of standard rims. These are available for bicycle manufacturers and many of these rims are developed together with some of the best bicycle companies or wheel builders of this world. This range varies from lightweight mountain bike rims to heavy duty aluminium rims and almost indestructible stainless steel rims.
SPECIFICATIONS:
SHAPE: double wall
JOINT: pin
TIRE USE: tube
HOOK TYPE: crotchet
BRAKE TYPE: disc brake
ETRTO: conform
SIZE (MM): 622
WEIGHT (GR): 571
ERD (MM): 589
CHEMICAL TREATMENT: powder coated
DIA. SPOKE HOLE NIPPLE BED (MM): 4,5
DIA. SPOKE HOLE TIRE BED (MM): 9
ANGLE RAD/AXI: 0/0 degrees
ZIG ZAG (MM): 0,6
NIPPLE HOLE TYPE: FL
VALVE HOLE (MM): 6,5
WASHERS (ONLY WITH DFL, FL VERSION): MG
PATTERN: french
MAX. SPOKE TENSION (N): 1300
TIRE WIDTH (MM): 22–57
AXLE LOAD (KG): ISO standard
SPOKE: 14G
