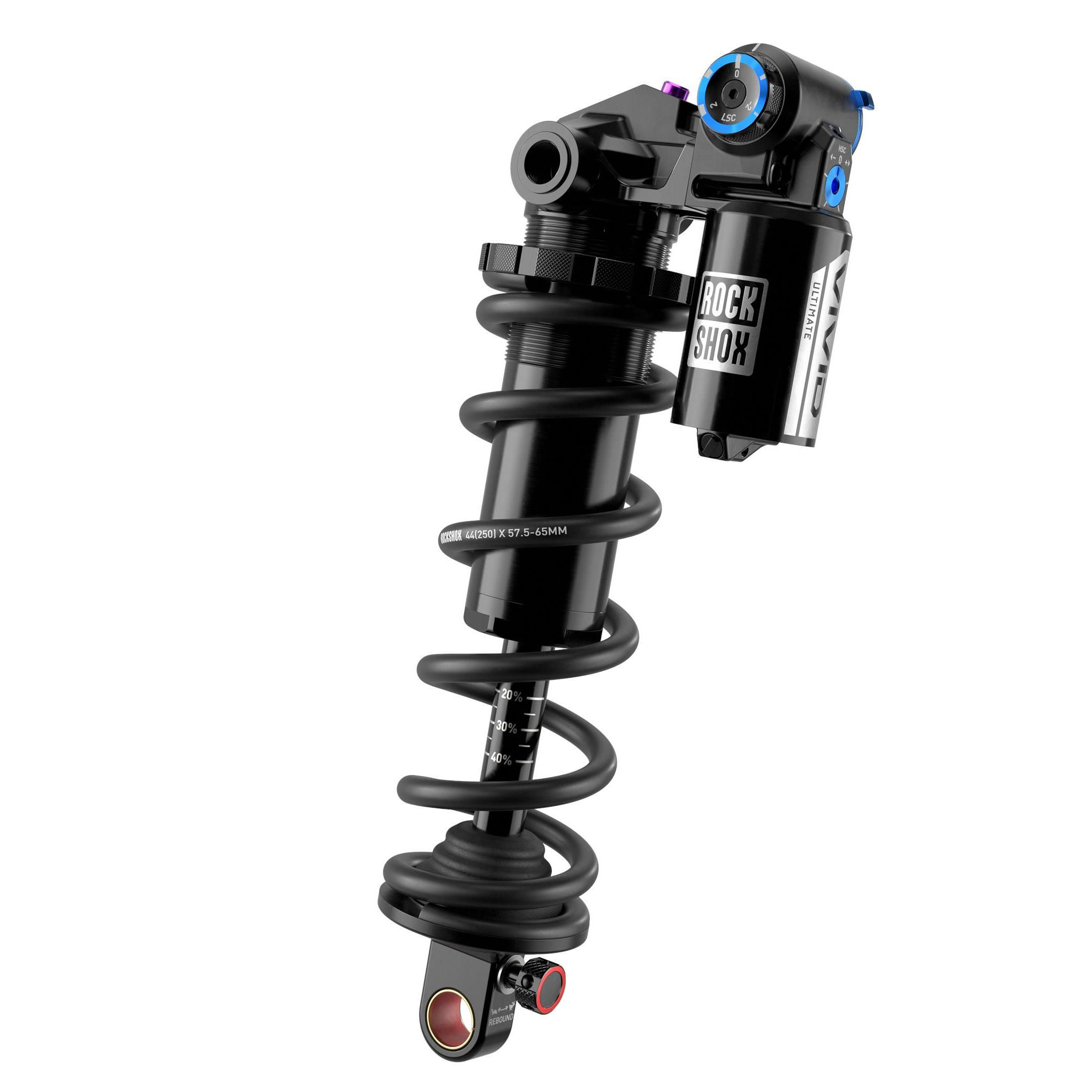

There’s a reason riders continue to trust coil—the feel is unmistakable. Supple off the top, supportive through the mid-stroke and confidently controlled at the end thanks to Adjustable Bottom-Out, coil delivers unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RCT2 damper introduces new main-piston compression tunes for strong mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear and easy to communicate. Distilling decades of coil dominance into a shock built for modern enduro, E-MTB and downhill bikes, Vivid Coil Ultimate brings the unmistakable heritage of coil into a new era of performance.
Features
 • RCT2 damper with wide, usable LSC and HSC adjustment ranges without cross-talk
 • Numbered Compression adjuster for intuitive damping setup starting at “0”
 • Base valve with 40% reduction in IFP forces for maximum suppleness and traction
 • Main-piston compression tunes matched to Charger 3.2 for confident mid-stroke support
 • Adjustable Bottom-Out (ABO) with five end-stroke compression settings
 • Removable Rebound knob doubles as HSC and ABO adjuster
 • 20 clicks of Rebound adjustment with uniform curves and broad rider-weight range
 • 8×30 bearing adapter available for all standard eyelets (upgrade kit)
Specifications

 Damper type: RC2T with adjustable hydraulic bottom-out
 Rebound tune: R25, R55
 Compression tune: C26, C34, C37
 Lockout force: X25, X45
 Shaft eyelet: No Bushing, Standard, Standard – 180° rotation
 Body eyelet: Standard, Trunnion
 E-bike approved: Yes
 Bottom-out system: Externally Adjustable Bottom-Out
