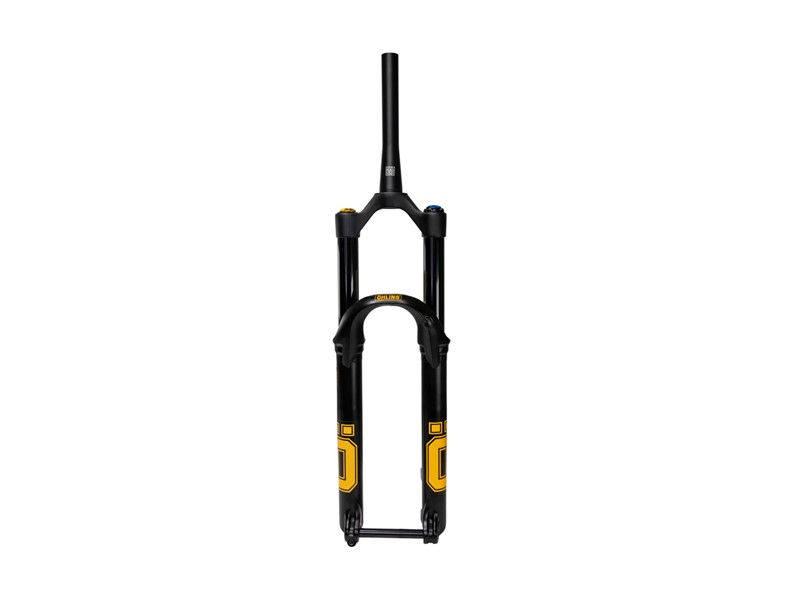

The RXF36 m.3 features an all-new chassis built around the race-proven TTX18 cartridge. This lightweight and highly progressive fork is fully optimized for demanding, next-level trail riding performance.
The race-winning TTX18 damping technology from the DH38 Race Fork delivers top-tier traction and control on the most demanding trails, with ultra-sensitive tracking over small bumps and Öhlins' signature precise steering and predictable handling.
The RXF36 m.3 features increased internal bushing overlap and travel up to 170mm for 27.5” wheels, with crown offset options. The adjustment range provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment, with a floating axle for minimal friction. The retuned twin piston, three chamber air spring lets you dial in progression from initial movement to bottom out, and is cartridge-based for easy swaps between coil and air.
Features
TTX technology.
Independent spring and damper systems.
36 mm stanchion tube.
Wheel size 27.5".
eMTB-approved.
Prepared for coil spring.
Floating 15 x 110 axle.
Weight: 2,050 g (with bolts + axle).
Specifications & codes
FGMTB-3617-2461 | Wheel Size: 27.5" | Offset: 38mm
FGMTB-3616-2460 | Wheel Size: 27.5" | Offset: 44mm
