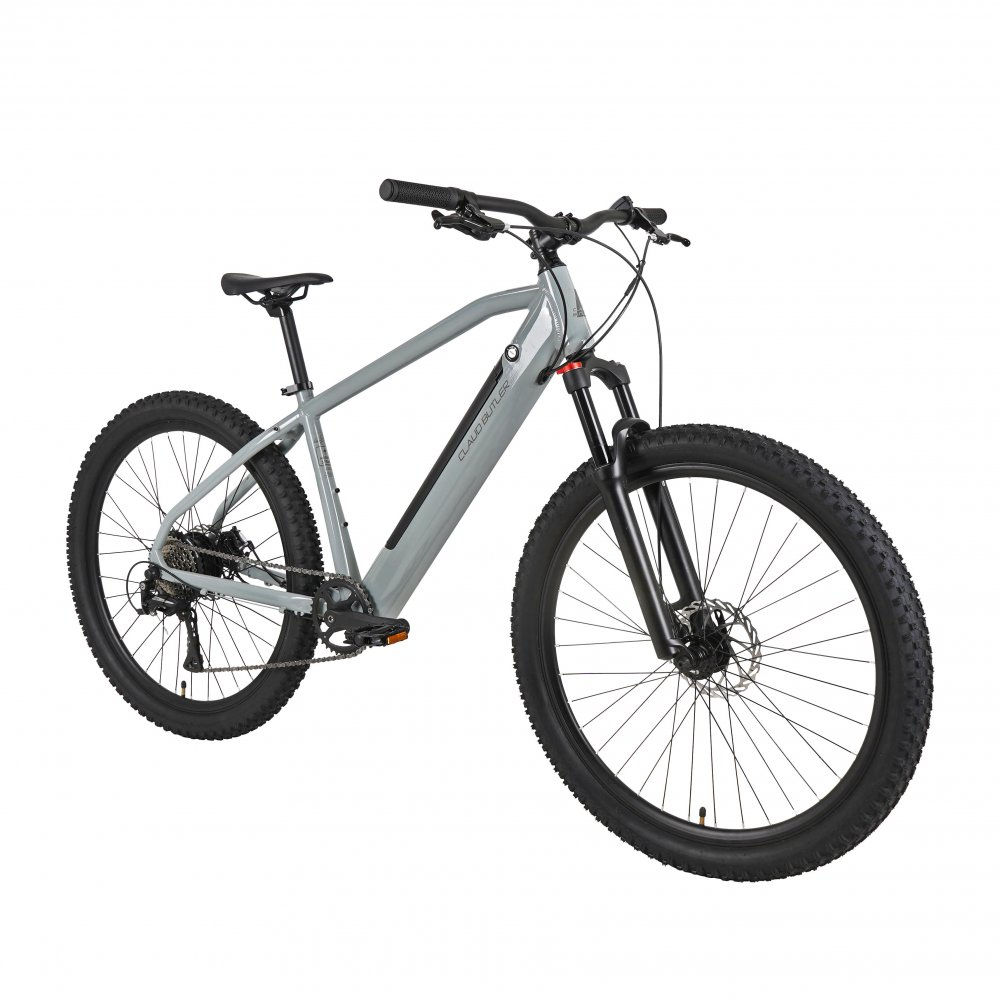

The Ridge 1.0 is a new electric mountain bike from Claud Butler, sibling to the Wrath.
A 375Wh integrated battery offers up to 40 miles (64km) of range with a 5-hour recharge; it can be charged on or off the bike and locks with a key. A Bafang rear hub motor provides 32Nm of torque, with five assist modes, a handlebar display showing battery level and speed, and walk assist.
27.5" wheels with 2.35" tyres, a Shimano Altus 1x8 drivetrain with an 11-40T cassette, a 120mm suspension fork with lockout, 780mm bars with a 50mm stem, cable disc brakes, Selle Royal saddle and lock-on grips. Built for trail riding.
Available in Medium (5'4" to 5'10" / 162-178cm) and Large (5'10" to 6'2" / 178-188cm).
Specifications
Maximum Range: 40 miles / 64km
Recharge Time: 5 hours
Maximum Assisted Speed: 15.5mph / 25kmh
Motor: Bafang rear hub motor, 32nm torque
Motor Type: Rear hub motor
Battery: 36V 10.4Ah, 375wh, Integrated battery, Removable for charging on or off the bike
Battery Type: Integrated
Charger: 42V 2A, 3 pin UK plug
Display: Toplogy DZ40 LCD Display with mode selection, battery level and current speed
Frame: 6061 aluminium, Internal cable routing, Fully integrated removable battery, 27.5" wheels
Fork: 27.5" suspension fork, Hydraulic lockout, 120mm travel
Handlebar: Aluminium, 780mm wide, 25mm rise
Stem: Aluminium, 50mm reach, 31.8mm
Grips: Lock on, Black
Gear Shifters: Shimano Altus SL-M315 trigger, 8 speed
Rear Derailleur: Shimano Acera RD-M3020, 8 speed
Chain: Taya eOcto eBike specific, 8 speed
Cassette/Freewheel: Shimano, 11-40T, 8 speed
Chainset: Electrum alloy, 38T, 170mm crank arms
Number of Gears: 8
Pedals: MTB platform
Brakes: JAK7 mechanical disc, Semi-metallic pads, 160mm rotors
Brake Levers: Alloy, Black
Front Hub: Alloy, quick release, Black
Rims: 27.5" double wall alloy, 36 hole
Tyres: Ralson Vector, 27.5x2.35"
Saddle: Selle Royal
Seat Post: Alloy, 27.2x350mm, Black
Mudguards: N/A
